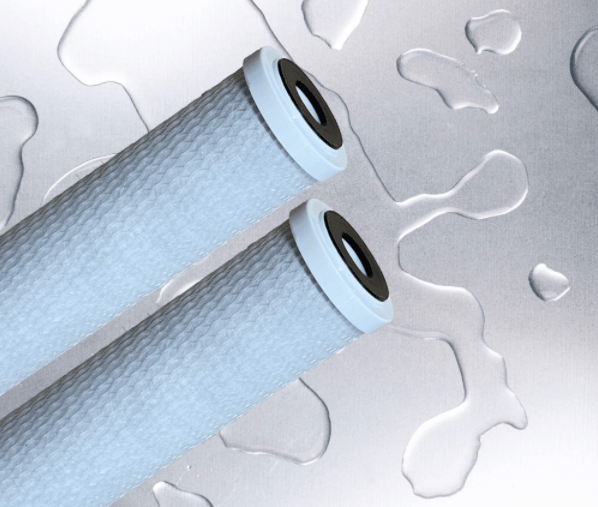

SCB-5-20: Powder Activated Carbon Block Filter 5µm 20"

Product Code: SCB-5-20-1

Availability:In stock

£22.50 22.50

Available Options

Qty

Key Features

  • Extruded under high pressure, eliminating the need for overuse of binders, increasing flow and dirt holding capabilities
  • Highly porous, lightweight, clean and tight microporous structure effective at reducing chlorine, taste and odour contaminants
  • Pre-washed, eliminating carbon fines
  • 75% minimum free chlorine reduction ensures the SCB's superiority over the ECB
  • Chlorine Reduction Start - End of Life (%): 95-75

  • Total Chlorine Capacity (mg): 22,750

  • Typical Life in UK Water: 113,750L




Typical Applications

  • Drinking water
  • VOC and THM reduction
  • RO protection




Specification

  • 5 micron
  • Carbon Type - Catalytic Activated coconut carbon
  • Netting - Polyethelyne
  • End-Cap - Polypropylene  DOE (Double Open-Ended)
  • Polypropylene Wrap
  • Max Operating Temperature - 52°C
  • Max Operating Pressure Differential - 2.5 Bar
  • Diameter: Regular (2.5")
  • Flow Rate (lpm): 7.6
  • Performance: Excellent Chlorine - Medium Sediment
  • WRAS Approved


SCB Properties

Length (“)

Chlorine Reduction (L) @2mg/l*

Chlorine Reduction (L) @0.2mg/l**

Pressure Drop (Bar)

Flow Rate (LPM)

9 3/4"

13,000

113,750

0.3

3.8

20

26,000

227,500

0.3

7.6

9 1/4BB

59,500

520,625

0.4

7.6

20BB

119,000

1,041,250

0.4

15

**Calculated chlorine capacity using 2mg/l free available chlorine at 0.5mg/l breakthrough

**Calculated chlorine capacity using 0.2mg/l free available chlorine at 0.05mg/l breakthrough
