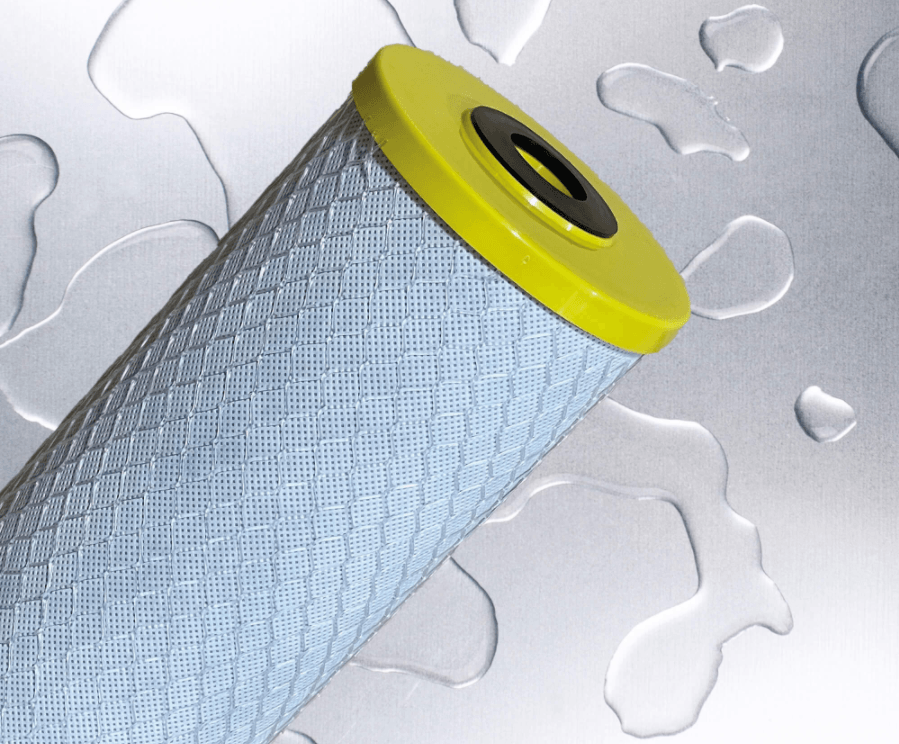

PCB-1-20LD: Pentair Chloramine Carbon Block 1µm 20" for Large Diameter

Product Code: PCB-1-20LD-1

Availability:In stock

£200.00 200.00

Available Options

Qty

Key Features

  • 1μm filtration level to remove fine sediment (5μm pre-filtration, i.e. SPECTRUM PSP recommended to extend life)
  • Reduces the risk of haemolitic anaemia
  • Chlorine capacity up to10x higher than the SCB
  • Ultra porous, modified powder activated carbon, exceptional at targeting chloramine
  • Long service life for chlorine reduction
  • Ultimate Chloramine Reduction  - The SPECTRUM PCB is specifically formulated for effective chloramine control and is the only cartridge to offer this feature within the range. Having been manufactured within a five-stage process, this exceptional catalytic activated carbon cartridge offers up to 10 times the capacity of the SCB. Essential for use in public water supplies where chloramine has been added as the disinfecting agent of choice, the PCB will typically be found within applications including aquatics and renal dialysis. Rated at one micron, pre-filtration from the SPECTRUM TruDepth range, such as the PSP at five micron, is recommended to maximise service life and prevent premature blocking.







Typical Applications

  • Hydroponics
  • Renal dialysis
  • Aquatics
  • Public drinking water supply




Specification

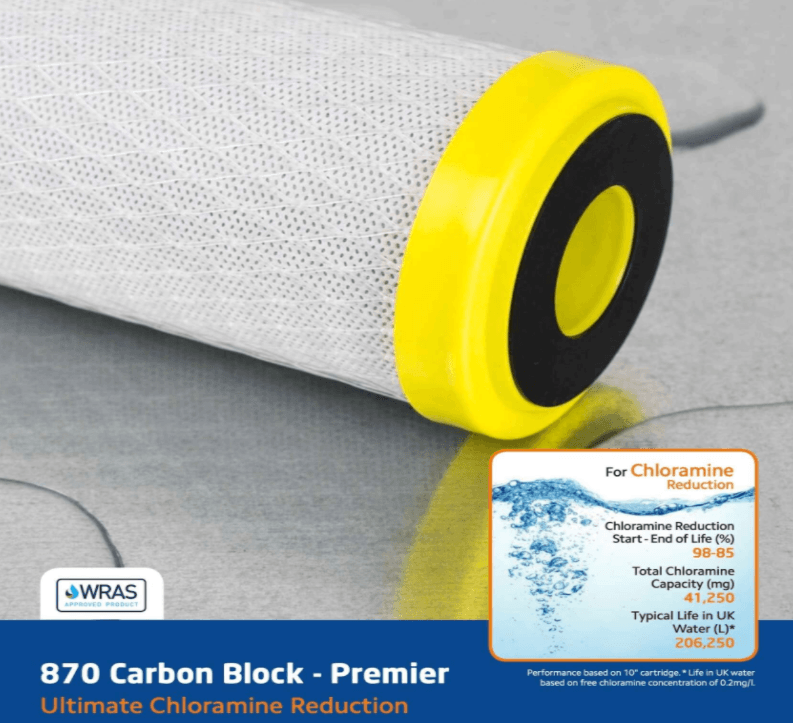

  • Chloramine Reduction Start - End of Life (%) - 98-85
  • Total Chloramine Capacity (mg) - 41,250
  • Typical Life in UK Water (L)* - 206,250
  • Carbon Type - Catalytic Activated Coconut Carbon
  • Netting - Polypropylene
  • Core: Polypropylene
  • Wrap: Polypropylene
  • End-Caps - Polypropylene  DOE (Double Open-Ended)
  • Gasket:  EPDM
  • Max Operating Temperature - 52°C
  • Max Operating Pressure Differential - 2.5 Bar
  • Material: Resin Impregnated Felt
  • Performance: Excellent Hydrocarbon
  • Micron: 1
  • Length: 20"
  • Diameter: Large (4.5")
  • End-Cap - DOE (Double Open-Ended)
  • Seal: Buna-N
  • Flow Rate (lpm): 40
  • WRAS Approved
  • FDA Compliant materials
  • NSF/ANSI 42 Certified Materials

Performance-based on 10" cartridge. * Life in UK water based on free chloramine concentration of 0.2mg/l.

PCB Properties

 Length (") Chloramine Reduction (L) * Chlorine Reduction (L) @ 2mg/l ** Chlorine Reduction (L) @ 0.2mg/l *** Pressure Drop (Bar) Flow Rate (LPM)
9 3/4 15,000 190,000 1,662,500 0.3 1.9
20 30,000 380,000 3,325,000 0.3 3.8
30 45,000 570,000 4,987,500 0.3 7.6
40 60,000 760,000 6,650,000 0.3 11.4
9 3/4BB 50,000 950,000 8,312,500 0.4 7.6
20BB 100,000 1,900,000 16,625,000 0.4 15.2



*Chloramine capacity using 3mg/l free available chlorine at 0.5mg/l breakthrough

**Chlorine capacity using 2mg/l free available chlorine at 0.5mg/l breakthrough

***Calculated chlorine capacity using 0.2mg/l free available chlorine at 0.05mg/l breakthrough
